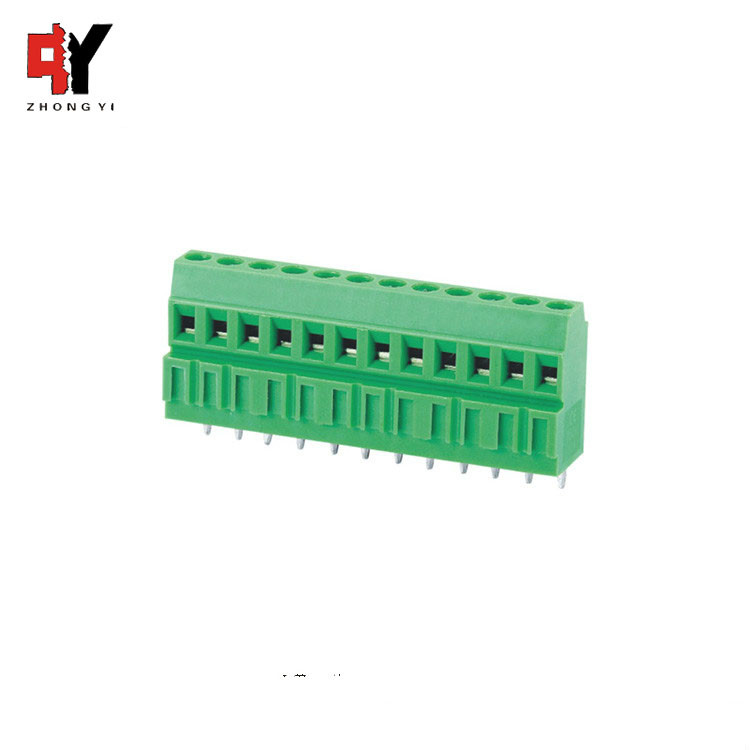

HQ128H-3.5/3.81 Pitch Screw Type Terminal Block 300V/10A Quick PCB Connector

Name: HQ128H35381 Pitch Screw Type Terminal Block 300V10A Quick PCB Connector
Brand: ZHONGYI
Price: 0.1 USD

Brand Name : ZHONGYI

Model Number : HQ128H-3.5/3.81

Place of Origin : China

MOQ : 100pcs

Price : $0.1~$1 ＞100pcs

Payment Terms : T/T

Supply Ability : 10000pcs/week

Delivery Time : 1-3 work days

Packaging Details : carton box

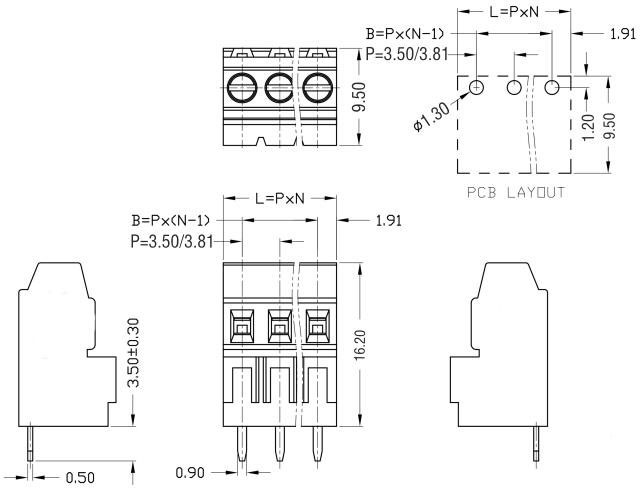

Pitch : 3.5mm/3.81mm

Poles : 2P.3P

Screws : M2.5.Steel.Zinc plated

Wire guard : Brass.Ni plated

Pin header : Brass. Tin plated

Housing : PA66.UL94V-0

Contact Now

HQ128H-3.5/3.81 pitch screw type terminal block 300V/10A quick PCB connector

Electrical

Rated voltage	300V
Rated current	10A
Withstanding voltage	AC1500V/1Min
Wire range	24-12AWG

Mechnical

Temp range	-40℃~+105℃
Max soldering	+250℃ 5 Sec
Torque	0.4Nm(3.6Lbin)
Strip length	6~7mm

Customized service

LOGO, please send us your logo,we can put it on the product.
 Packing, we accept customer's package,if you have specific requirement,please tell us.
 ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.

HQ128H-3.5/3.81 Pitch Screw Type Terminal Block 300V/10A Quick PCB Connector

Product Tags:

3.5mm Pitch Screw Type Terminal Block

3.81 Pitch Screw Type Terminal Block

300V 10A Screw Type Terminal Block
